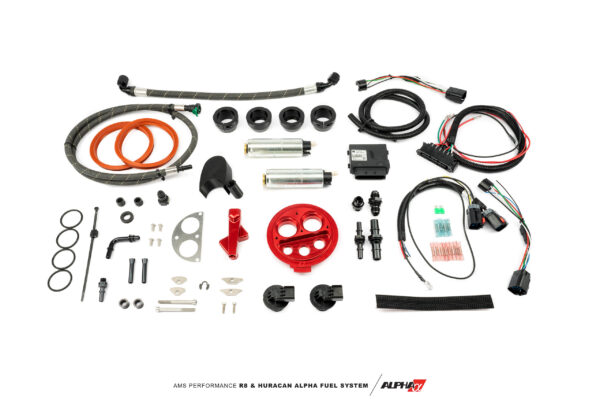

AMS PERFORMANCE R8/HURACAN ALPHA FUEL SYSTEM – TWIN PUMP KIT

$4,499.95

The most advanced plug and play fuel system on the market.

Download Instructions

SKU: ALP.37.07.0002-1 Categories: , , ,

The factory fuel pump system in the Audi R8 and Lamborghini Huracan utilizes a high-end brushless fuel pump, and a complex routing of fuel lines to produce an excellent fuel delivery solution. Unfortunately, the engineers designing the OEM system didn’t spec it to be capable of the 1000+ HP that we commonly see from our Alpha Twin Turbo Kit vehicle builds. Our AMS Snailworks® Engineering Team took this as an opportunity to not only increase the total throughput of the fuel pump system, but to do it in such a way that all of the OEM functionality is retained. Gone are the days of being required to keep your fuel tank filled to a minimum of a half tank, or being forced to use an external fuel surge tank mounted in the engine bay.

    • FULL ALPHA FUEL SYSTEM SUPPORTS 2400+ HP OF FUEL DELIVERY ON GASOLINE AND 1600+ HP ON E85
    • TWIN BRUSHLESS FUEL PUMPS PROVIDE QUIET OPERATION AND EXTREME FLOW CAPABILITY
    • ALL MATERIALS AND COMPONENTS ARE FULLY ETHANOL AND METHANOL COMPATIBLE
    • FULLY INTEGRATES WITH STOCK ECU OR STANDALONE ECU SOFTWARE SUCH AS MOTEC M142 FOR A SEAMLESS SOLUTION
    • CNC MACHINED RED ANODIZED ALUMINUM FUEL PUMP ASSEMBLY BULKHEAD AND FUEL PUMP OUTLET MANIFOLD
    • USES RACE-GRADE AN FITTINGS AND QUICK CONNECT FITTINGS FOR EASY INSTALL AND LEAK-FREE OPERATION
    • UTILIZES EXTERNALLY CORRUGATED, SMOOTH BORE, PTFE LINED HOSE FOR KINK-FREE FLEXIBILITY, EXCELLENT FLOW, AND FUEL FUME CONTROL
    • PLUG ‘N PLAY HARNESSES INCLUDED FOR AN EASY INSTALL
    • CNC MACHINED ANODIZED ALUMINUM BRACKETS SECURE THE FUEL PUMPS WITHIN BASKET
    • SIPHON SYSTEM FUNCTIONALITY RETAINED TO ALLOW FOR OEM-LIKE LOW FUEL LEVEL USAGE AND MONITORING

DELIVERING A COMPLETE SOLUTION WITH THE ALPHA FUEL SYSTEM

The Alpha Fuel System has been developed by our talented AMS Snailworks® Engineering Team as a complete system, but with a modular approach. We know that many enthusiasts will want to do custom fuel system builds to their own specifications, so we’ve broken down the complete vehicle fuel system to four separate subcomponents – the Twin Pump Kit at the fuel tank, the Fuel Pressure Regulator and Fuel Line Kit in the engine bay, the Fuel Rail Kit on the intake manifold, and an optional Flex Fuel Kit Add-on for those wanting to run ethanol fuels. While these four main subcomponents are available to purchase separately, they have all been designed to fit together seamlessly as a complete system.

The benefit of developing a system in this manner is that we can reimagine how the system fits and works together to optimize vehicle-wide systems to improve fuel flow, drivability, and ease-of-use. There are a number of extremely restrictive components within the factory fuel system which our reimagined Alpha Fuel System reroutes, removes, or replaces to vastly increase fuel throughput. Another of the key features of the Alpha Fuel System is the ability to have OEM-like siphon system functionality, without the highly restrictive fuel flow of the OEM system. Because we have been able to re-engineer the entire fuel system as a complete unit, we can provide fuel to both sides of the saddle tank equally, keeping the fuel pump assembly full of fuel at all times. Where other builder’s kits use impractical and potentially dangerous external surge tanks, or can’t be driven below half a tank without fuel starving, the Alpha Fuel System solves these issues by way of our advanced engineering.



APPLICATIONS

  • 2017-Current Audi R8 Gen 2 (Incl. Plus & Performance models)
  • 2015-Current Lamborghini Huracan (Incl. Performante, Evo, & STO models)



PRODUCT NOTES

  • The subcomponents of the R8/Huracan Alpha Fuel System are all designed to be used in conjunction with one another. Some custom fitting will be necessary if you are not using the complete Alpha Fuel System.
  • Stock ECU compatibility relies heavily upon the software being used to calibrate it. We can only guarantee functionality with our custom stock ECU tuning service found in our Alpha packages. Contact your tuner directly for compatibly confirmation.



WARNING: By purchasing this fuel system component you confirm that you have read and understand the following: WARNING/DANGER: SERIOUS RISK OF FIRE, EXPLOSION, BODILY INJURY INCLUDING RESULTING DEATH, AND ENGINE, VEHICLE, AND OTHER PROPERTY DAMAGE. THIS FLEX FUEL KIT MUST BE INSTALLED AND REMOVED ONLY BY A QUALIFIED MOTOR SPORTS TECHNICIAN. THE TECHNICIAN ALSO MUST BE TRAINED IN HOW TO INSTALL AND REMOVE THIS KIT FROM THIS SPECIFIC VEHICLE. THE TECHNICIAN MUST NOT PARTICIPATE IN ANY ACTIVITY THAT WOULD BE CONSIDERED A CATALYST FOR IGNITION WHILE INSTALLING OR REMOVING THIS KIT AND MUST READ THE INSTALLATION INSTRUCTIONS BEFORE INSTALLATION OR REMOVAL.



Download Instructions

Customers also bought:

AMS PERFORMANCE R8/HURACAN ALPHA FUEL SYSTEM – FUEL PRESSURE REGULATOR + FUEL LINE KIT
AMS PERFORMANCE R8/HURACAN ALPHA FUEL SYSTEM – FUEL RAIL KIT
AMS PERFORMANCE R8/HURACAN ALPHA FUEL SYSTEM – FLEX FUEL KIT ADD-ON

Weight 35 lbs
Dimensions 25 × 11 × 11 in
