Out of stock



After Years of development work on the 2.5TFSI, we are proud to announce our XonaRotor 10569S based IMS1100 kit for the 8V/8S RS3/TTRS.

Included in the IMS1000 turbo kits:

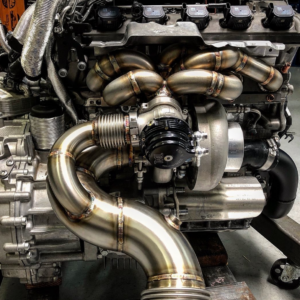

  • IMS fully backpurged and fixtured stainless manifold. Provisions for single EGT sensor included.
  • XonaRotor 10569S Turbocharger with .82 A/R or optional 1.03 Stainless steel TiAl exhaust housing.
  • TiAl Sport MV-R 44mm External wastegate
  • IMS boost control solenoid & bracket
  • 4” Turbo inlet with factory connections for Crankcase ventilation. (optional 3.5″ available for RHD vehicles only) Please contact sales directly for RHD vehicles.
  • 33.5″ stainless downpipe with flex sections, wastegate tie-in and o2 provisions
  • V-band clamps for inlet and outlet of turbocharger and downpipe connections
  • Oil/coolant lines for factory connection to block, OEM quality
  • Harness extension for boost valve location
  • New exhaust manifold gasket
  • New hardware for installing kit
Recommended Supporting Modifications:
Due to the extreme level of power this turbo system is capable of producing we advise you to speak directly with an IMS representative for best results!
Contact Us
Weight 85 lbs
Dimensions 48 × 16 × 16 in
AR Spec

.82, 1.03
